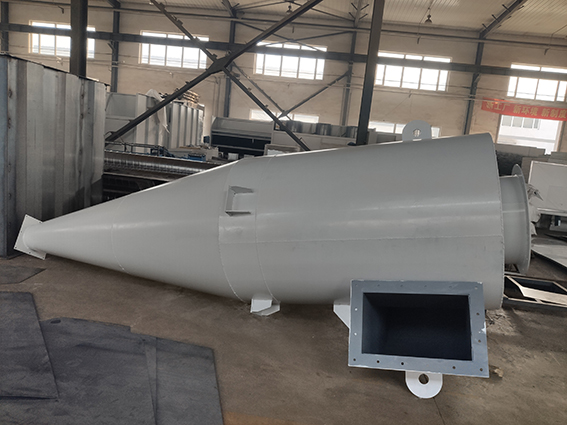

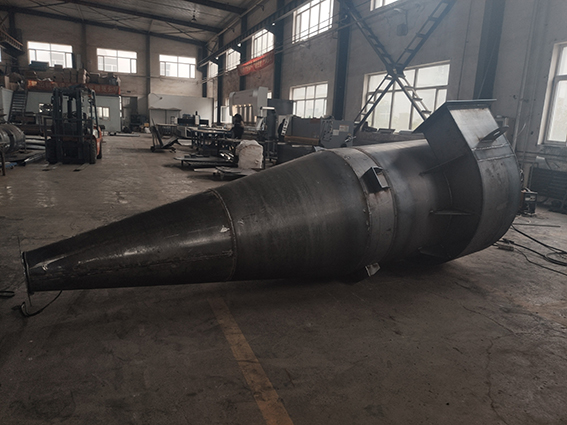

Cyclone
Class：Dust treatment equipment
Specs：
Price：
Telephone：
Product description
 |
 |
 |
 |
product description
Cyclone dust collectors are a type of dust removal device. The dust removal mechanism is to make the dust-containing airflow rotate, and the dust particles are separated from the airflow by the centrifugal force and trapped on the wall, and then the dust particles fall into the ash bucket by gravity. Each component of the cyclone has a certain size ratio, and the change of each proportional relationship can affect the efficiency and pressure loss of the cyclone. The diameter of the precipitator, the size of the inlet and the diameter of the exhaust pipe are the main influencing factors. . When using it, it should be noted that when a certain limit is exceeded, favorable factors can also be converted into unfavorable factors. In addition, some factors are beneficial to improve the efficiency of dust removal, but it will increase the pressure loss, so the adjustment of various factors must be taken into consideration.
Industry Standard
AQ 1022-2006 bag filter for coal mine
DL/T 514-2004 Electrostatic precipitator
JB/T 10341-2002 filter cartridge dust collector
JB/T 20108-2007 Medicinal pulse bag filter
JB/T 6409-2008 Wet electrostatic precipitator for gas
JB/T 7670-1995 tubular electrostatic precipitator
JB/T 8533-1997 Rotary blowback bag type dust collector
JB/T 9054-2000 Centrifugal Dust Collector
MT 159-1995 mining dust collector
JC/T 819-2007 CXBC series bag filter for cement industry
JC 837-1998 sub-chamber anti-air bag filter for building materials industry
product category
1 high-efficiency cyclone dust collector, the cylinder diameter is small, used to separate fine dust, the dust removal efficiency is above 95%;
2 large-flow cyclone dust collector with large cylinder diameter for handling large gas flow, and its dust removal efficiency is 50-80% or more;
3 general-purpose cyclone dust collector, the air volume is moderate, due to different structural forms, the dust removal efficiency fluctuates between 70-85%.
4 explosion-proof cyclone dust collector, with its own explosion-proof valve, with explosion-proof function.
According to the structural form, it can be divided into a long cone, a cylinder, a diffusion type, and a bypass type.
According to the combination and installation conditions, it is divided into internal cyclone dust collector, external cyclone dust collector, vertical and horizontal type, and single cylinder and multi-tube cyclone dust collector.
According to the introduction of airflow, the flow path of the airflow into the cyclone and the secondary air can be roughly divided into the following two types:
1 cut flow reverse cyclone
2-axis flow cyclone
